This section guides you through setting up, configuring, and managing the Cisco UCM integration.

Prerequisites

  • OpsRamp Classic Gateway (Linux) 15.0.0 and above.
  • OpsRamp Nextgen Gateway 15.0.0 and above.
  • Upgrade to the latest Gateway version to ensure comprehensive coverage of recent bug fixes, feature enhancements, and so on.
  • Ensure that the provided Publisher or Subscriber IP address or host name, along with the credentials, are valid and accessible for successful integration (verify from the OpsRamp Gateway).
    • To check network connectivity from the gateway, use the following command:
      ping <IP Address/Host Name>

Configure and Install the Cisco UCM Cluster Integration

  1. From All Clients, select a client.
  2. Go to Setup > Account.
  3. Select the Integrations and Apps tab.
  4. The INSTALLED INTEGRATIONS page, where all the installed applications are displayed.
    Note: If there are no installed applications, it will navigate to the Available Integrations and Apps page.
  5. Click + ADD on the INSTALLED INTEGRATIONS page. The AVAILABLE INTEGRATIONS AND APPS page displays all the available applications along with the newly created application with the version.
    Note: You can even search for the application using the search option available. Also you can use the All Categories option to search.
  6. Click ADD in the Cisco UCM Cluster application.

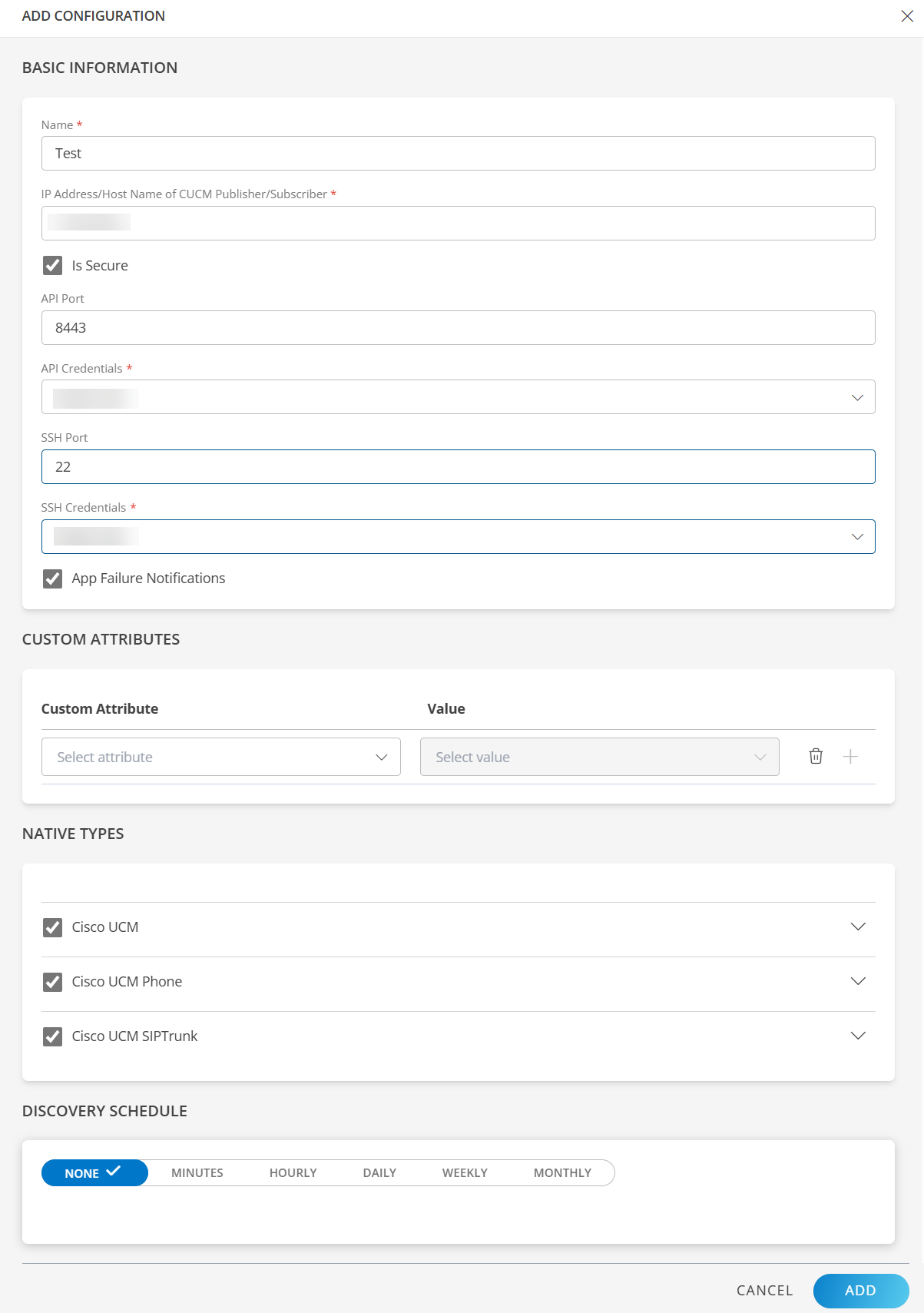

  7. In the Configurations page, click + ADD. The Add Configuration page appears.
  8. Enter the following BASIC INFORMATION:
Field NameDescriptionField Type
NameA user-defined display name for the integration instance.String
IP Address/Host Name of CUCM Publisher/SubscriberEnter the IP Address/Host Name. It should be accessible from Gateway.String
Is SecureSelect this checkbox if you want the communication between your system and the specified endpoint to be secured using protocols such as HTTPS (HTTP over SSL/TLS). Default Selection: When selected, it signifies that the connection is encrypted, providing an added layer of security to the data being transmitted.Checkbox
API PortEnter the Cisco UCM API Port. By default 8443 is added.String
API CredentialsProvide the Windows authentication credentials required to connect to the API EndPoint credentials.
You can either select from the dropdown if the credentials are existing. Else click +ADD to create credentials.
In the ADD CREDENTIAL window enter the following:
  • Name: Enter the name of the credential.
  • Description: Enter the brief description of the credential.
  • User Name: Enter the User name of the credential.
  • Password: Enter the Password of the credential.
  • Confirm Password: Enter the password to confirm.
  • Port:Select the port number from the dropdown.
  • Connection Timeout (ms):Specify the connection timeout in milliseconds.
Dropdown
SSH PortEnter the Cisco UCM Publisher or Subscriber SSH Port, By default 22 is added.String
SSH CredentialsSelect or create the appropriate Cisco UCM Publisher or Subscriber SSH credentials. Else click +ADD to create credentials.
In the ADD CREDENTIAL window enter the following:
  • Name: Enter the name of the credential.
  • Description: Enter the brief description of the credential.
  • User Name: Enter the User name of the credential.
  • Password: Enter the Password of the credential.
  • Confirm Password: Enter the password to confirm.
  • Port:Select the port number from the dropdown.
  • Connection Timeout (ms):Specify the connection timeout in milliseconds.
Dropdown
App Failure NotificationsWhen selected, you will be notified in case of an application failure such as Connectivity Exception, Authentication Exception.
Checkbox
  1. Select the below mentioned Custom Attribute:
Field NameField TypeField DependencyDescription
Custom AttributeDropdownN/ASelect the custom attribute from the dropdown.
ValueDropdownN/ASelect the value from the dropdown.

Note: The custom attribute that you add here will be assigned to all the resources that are created by the integration. You can add a maximum of five custom attributes (key and value pair).

  1. In the RESOURCE TYPE section, select:
    • ALL: All the existing and future resources will be discovered.
    • SELECT: You can select one or multiple resources to be discovered.
  2. In the DISCOVERY SCHEDULE section, select Recurrence Pattern to add one of the following patterns:
    • Minutes
    • Hourly
    • Daily
    • Weekly
    • Monthly
  3. Click ADD.


Now the configuration is saved and displayed on the configurations page after you save it.
Note: From the same page, you may Edit and Remove the created configuration.

  1. Click Next.
  2. Below are the optional steps you can perform on the Installation page.

  • Under the ADVANCED SETTINGS, Select the Bypass Resource Reconciliation option, if you wish to bypass resource reconciliation when encountering the same resources discovered by multiple applications.

    Note: If two different applications provide identical discovery attributes, two separate resources will be generated with those respective attributes from the individual discoveries.

Cisco FirePower
  • Click +ADD to create a new collector by providing a name or use the pre-populated name.
  1. Select an existing registered profile.
Aruba Airwave Integrations
  1. Click FINISH.

The application is now installed and displayed on the INSTALLED INTEGRATION page. Use the search field to find the installed application.

Modify the Configuration

Discover Resources in Cisco UCM Cluster

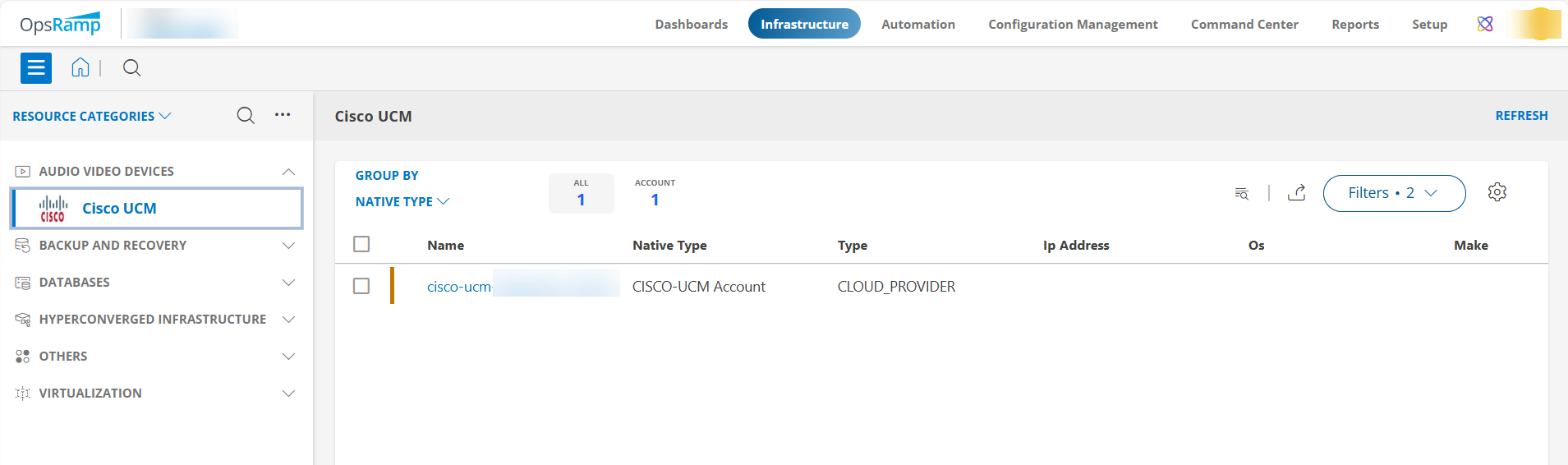

  1. Navigate to Infrastructure > Search > AUDIO VIDEO DEVICES > Cisco UCM.
  2. Select the application on the Cisco UCM page.
  3. The RESOURCE page appears from the right.

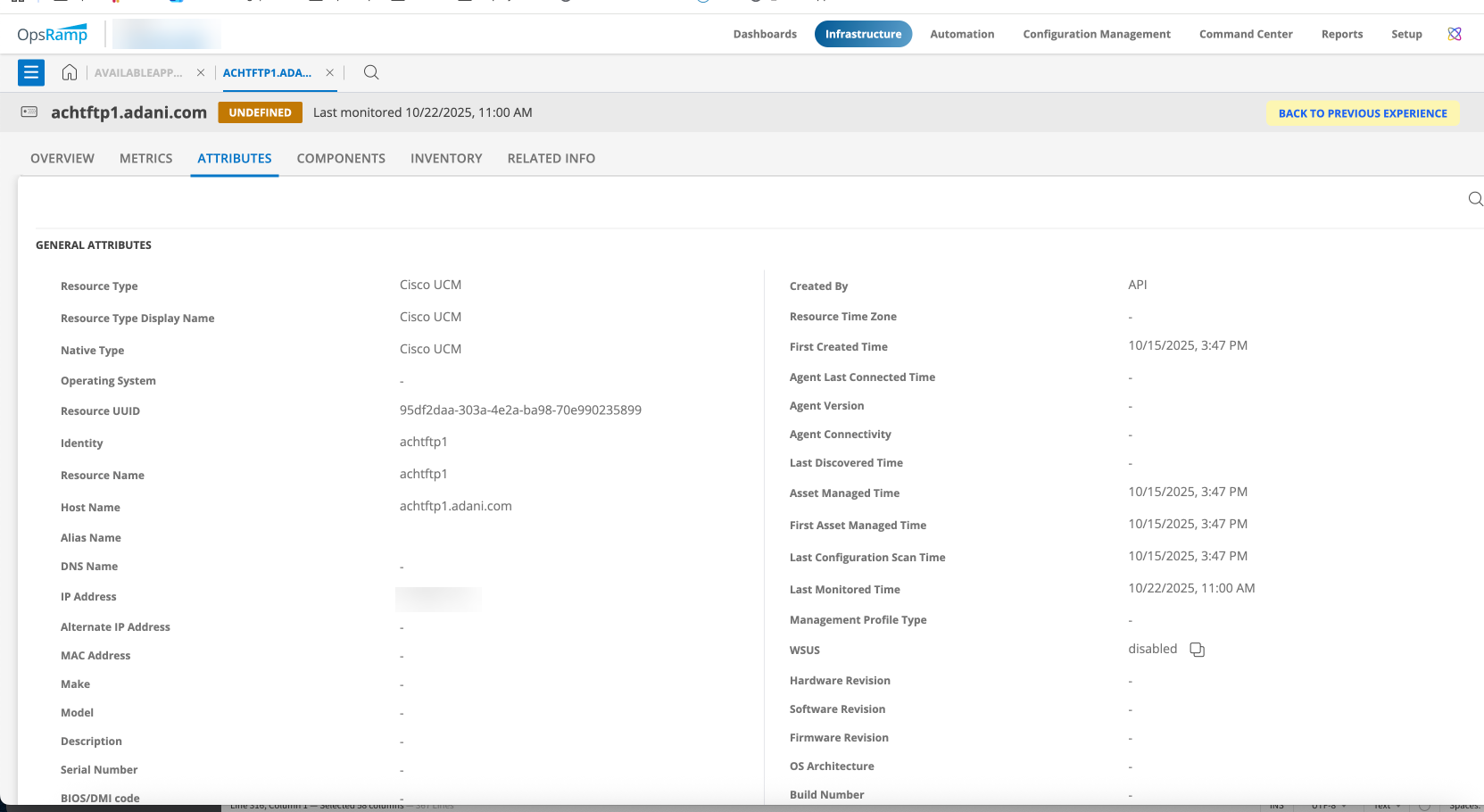

  4. Click the ellipsis (…) on the top right and select View Details.

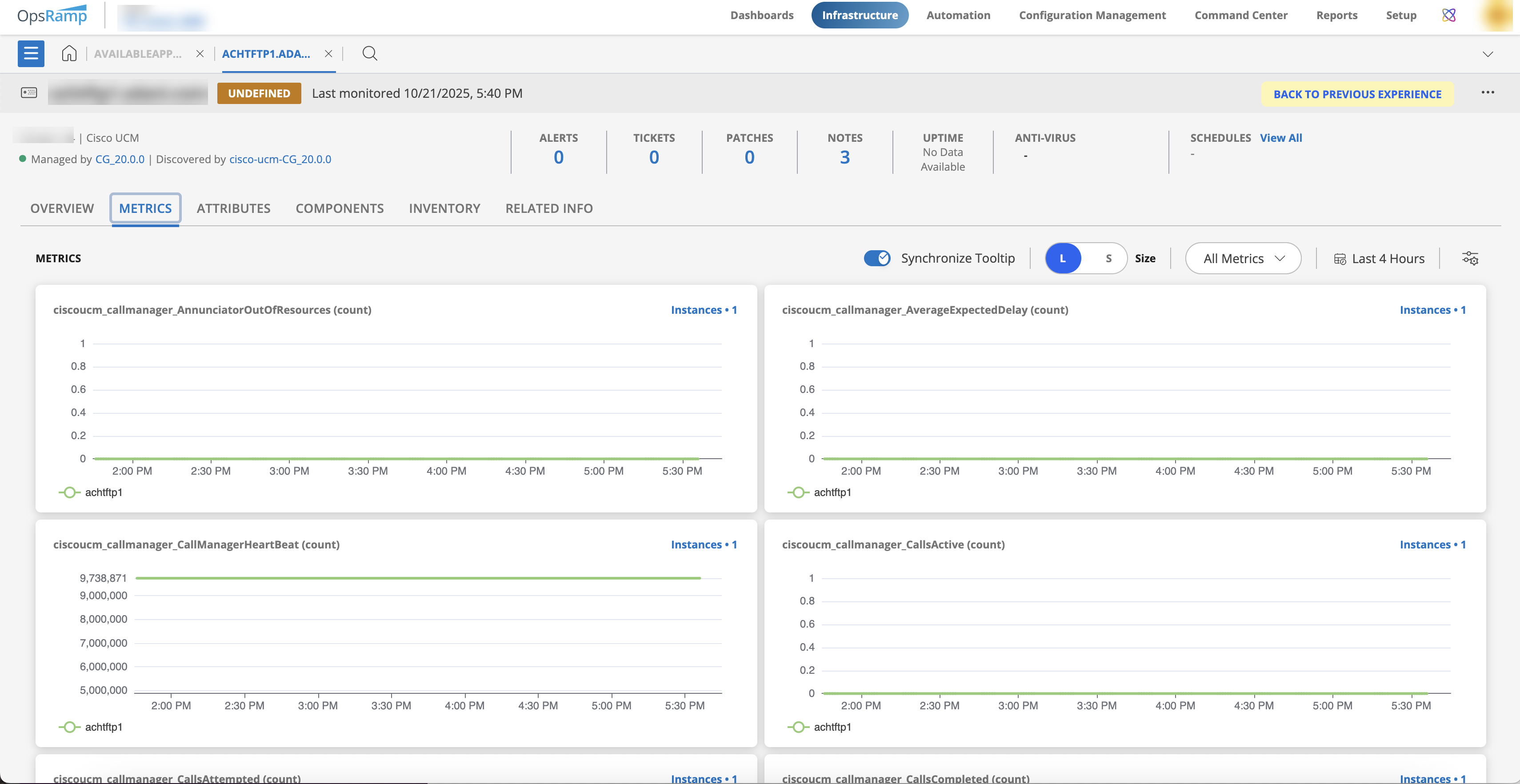

View resource metrics

To confirm Cisco UCM Cluster monitoring, review the following:

  • Metric graphs: A graph is plotted for each metric that is enabled in the configuration.
  • Alerts: Alerts are generated for metrics that are configured as defined for integration.
